WINCOO

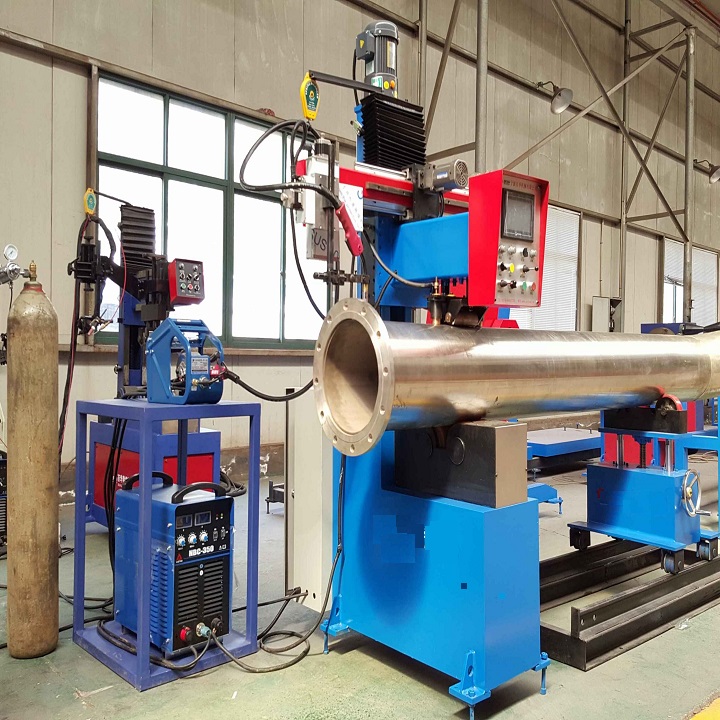

Model:PFAWM-16Ab/ 24Ab/32Ab/40Ab/48Ab/60Ab
Performance features:
1.On-line Performance: Excellent (Designed completely as per the on-line equipment of the production line)
2.Application: extremely broad (pipe and cover welding of various structures in various industries).
3.Welding Capacity: Excellent (250-350 inch/day, which is 4 times higher than the manual welding)
4.Operability: Good (applicable and easy to operate even if you are a new user)
5.Surface finishing: Excellent (the welding gun will be positioned in the optimum position always)
6.Welding qualification rate: 98% min (without re-working for the skilled operator).
7.Driving Reliability: Good (driven by frictional force, however, it is required to set essential balance weight to offset large bending moment caused by elbows for large diameter pipe, or providing a chain tensioner to improve the reliability of the driving)
Input voltage | 380V50HZ | Tube diameter | DN100-600 |
Input capacity | 50kw | Suitable length | 300-1200mm |
Wall thickness | 6-50mm | Application materials | Carbon steel,stainless steel,alloy steel |
Artifacts requires | Can not influence the assembly qualified,welds form of corrosion,such as wrong side of nature and man for the defect.The error requirement:argon arc welding 1mm or less gas shielded welding 3mm or less | Welding process | Argon arc/gas backing. argon arc/gas/submerged arc welding filler welding covering |
Welding form | Multi-level,multi-channel welding | ||
Welding torch lifting | Motor,stepping motor driver | ||
Work piece rotation | Round up and down pressure,motor reducer drive,speed adjustable stepless | ||
Welding power source | With reference to the above equipment list the power configuration in the table | ||
Apply to weld | The tube-tube,the tube-pipe elbow,the tube-flange,the tube-tee joint,pipe size head | ||
Form a complete set of logistics | 1 set,2 sets of car+7.5m,walking can be in orbit manual,meet different length of the bearing. | Swing system | Argon arc:pendulum,gas shielded:line submerged arc:no swing swing:+/-25mmO(adjustable) the pendulum:20-60 times/min(adjustable)(not package about timing time) |
The base of mobile | Electric | ||
Welding qualified | Welding qualified rate of more than 98% | ||
Welding efficiency | 250-350-inch diameter/10hours | ||
