The pipelayer is an important construction equipment in the construction of oil and natural gas pipeline, which is mainly used for distributing, matching and ditching operations of large diameter pipe. It has the characteristics of large lifting weight and walking with heavy objects.
Pipe crane is generally composed of metal structure, working mechanism, power plant and control system.
1. Metal structure
Metal structure is an important part of pipelayer, its main function is to support the working mechanism of pipe crane, to withstand the external load generated during work. For example, the boom and tower of the boom type pipelayer.
2. Working Mechanism
The working mechanism of pipelayer is composed of lifting mechanism, operating mechanism, return transfer mechanism and luffing mechanism. The main function of the lifting mechanism is to lift heavy objects. This is also the most important and basic mechanism of the pipelayer. The lifting mechanism used at present mainly relies on the hydraulic system to realize the lifting of heavy objects; The amplitude changing mechanism changes the amplitude of the boom by changing the Angle of the boom of the pipelayer. The slewing mechanism is to make the slewing part of the pipelayer rotate around the rotating shaft; The function of the running mechanism is to make the pipelayer walk.
3. Power plant
The power plant provides power for the pipelayer. The driving device of wheel type pipelayer and crawler type pipelayer is mostly internal combustion engine, while the driving device of bridge type pipelayer and fixed pipelayer is mostly external power supply.
4. Control system
The control system includes control device and safety device. The control device is composed of clutch, brake, etc., and the safety device is composed of torque limiter, control valve and speed regulating device. Complete the work requirements through the control system of the pipelayer. At the same time to ensure the safety of the pipelayer operation.
We currently have two main types of pipelayer, and we can also provide customized service if you have other needs.

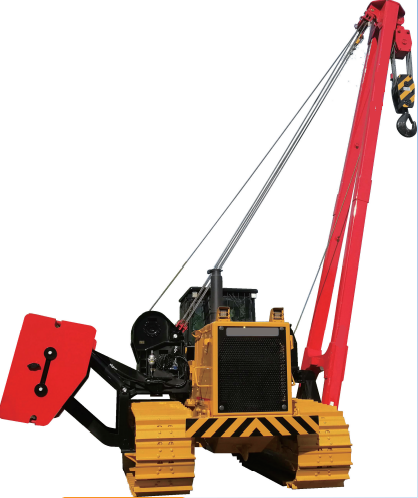

I. HGY series pipelayer adopts a special pipelayer chassis, mainly used for lifting in pipeline construction process,such as pipeline laying, group pairing,undergroud ditch and other processes.
II. HGY series weiding pipelayer is a special equipment for pipe construction with functions of laying and welding developed by our company according to the construction process requirements of long distance pipeline, summarizing the experience at home and abroad. HGY welding pipelayer adopts the special chassis for the whole hydraulic pipe hanger developed by itself, which is controlled by the single handle of electrical/hydraulic instruction, imported famous hydraulic components, wide and narrow combination crawler, which has the advantages of small volume, reasonable structure, convenient transportation, small grounding specific pressure, strong adaptability, stable and simple operation, and good micro-dynamic performance. It can not only meet the requirements of most processes in the construction of long distance pipeline with but also can form a unit alone in the pipeline.
6, Strong adaptability
| I. HGY series pipelayer | ||||||
| Model | HGY20 | HGY40 | HGY70 | HGY90 | ||
| Max.lifting capacity | 25t | 45.7t | 70t | 90t | ||
| Rated lifting capacity | 21.25t | 38.25t | 59.5t | 76.5t | ||
| Operating weight(approx) | 22t | 35t | 49t | 55t | ||
| Shipping outline dimension for main equipment(L*W*H) | 4150×3050×3250 (mm) | 4855×3384×3270 (mm) | 5630×3400×3540 (mm) | 5630×3436×3540 (mm) | ||
| Shipping weight for main equipment | 21.5t | 26t | 37.5t | 38.9t | ||
| Average ground pressure | 76.4KPa | 85.2KPa | 87.3KPa | 86.6KPa | ||
| Min.ground clearance | 480mm | 490mm | 550mm | 550mm | ||
| Max.gradeability | 25° | 25° | 25° | 25° | ||
| Applicable environment | -50ºC ~+65ºC | -50ºC ~+65ºC | -50ºC ~+65ºC | -50ºC ~+65ºC | ||
| Engine | Model | SHANGCHAI SV11CB | CUMMINS NT855-C280 | CUMMINS NT855-C280 | CUMMINS NT855-C280 | |
| Rated power | 120KW | 169KW | 239KW | 257KW1850rpm | ||
| Rated rotary speed | 1850rpm | 2000rpm | 2000rpm | 2000rpm | ||
| Walking system | Operation mode | Joystick | Joystick | Joystick | Joystick | |
| Theoretical speed | Forward(shift2) | 3.29/5.28 km/h | 3.6/6.6 km/h | 3.6/6.6 km/h | 3.6/6.6 km/h | |
| Backward(shift2) | 4.28/7.59 km/h | 4.3/7.7 km/h | 4.4/7.8 km/h | 4.4/7.8 km/h | ||
| Length of track on ground | 2635mm | 3050mm | 3620mm | 3620mm | ||
| Track width | 560mm | 660mm | 760mm | 760mm | ||
| Number of track rollers | 7×2 | 7×2 | 9×2 | 9×2 | ||
| Crane system | Range form | The wire rope luffing form | The wire rope luffing form | The wire rope luffing form | The wire rope luffing form | |
| Operating mode | The hydraulic control handle | The hydraulic control handle | The hydraulic control handle | The hydraulic control handle | ||
| crane link | The length of the crane link | 6000mm | 7500/8500mm | 7600/8600mm | 8600/9600mm | |
| Max lifting height | 4909mm | 6100/7050mm | 6100/7050mm | 7050/9600mm | ||
| The crane link luffing angle | 0~85° | 0~86° | 0~86° | 0~86° | ||
| Hook speed(six to eight times) | 0~12.0m/min | 0~6.2 m/min | 0~7.0 m/min | 0~7.0 m/min | ||
| Elevating time(four to five times) | 25s | 20s | 32s | 40s | ||
| II. HGY series welding pipelayer | |||
| Model | HGY30 | ||
| Max.lifting capacity | 30t | ||
| Rated lifting capacity | 25.5t | ||
| Operating weight(approx) | 27t | ||
| Shipping outline dimension for main equipment(L*W*H) | 5771×3200×3290(mm) | ||
| Shipping weight for main equipment | 26t | ||
| Average ground pressure | 58.6KPa | ||
| Min.ground clearance | 436mm | ||
| Max.gradeability | 20° | ||
| Applicable environment | -50ºC ~+65ºC | ||
| Engine | Model | CUMMINS 6BTA5.9 | |
| Rated power | 125KW | ||
| Rated rotary speed | 2300rpm | ||
| Walking system | Operation mode | The hydraulic control handle | |
| Theoretical speed | Forward(shift1) | 0~2 km/h CVT | |
| Backward(shift2) | 0~5 km/h CVT | ||
| Length of track on ground | 3070mm | ||
| Track width | 910mm | ||
| Number of track rollers | 7×2 | ||
| Crane system | Range form | The wire rope luffing form | |
| Operating mode | The hydraulic control handle | ||
| First crane link | The length of the crane link | 7500mm | |
| Max lifting height | 6590mm | ||
| Second crane link | The length of the crane link | 2600mm | |
| Max lifting height | 8750mm | ||
| The crane link luffing angle | 0~85° | ||
| Hook speed(six to eight times) | 0~13.0m/min | ||
| The crane link elevating time | go down:24s/go up:24s | ||
| Generator | Nominal capacity | 85 kVA | |
| The rated voltage | 380 V | ||
| Frequency | 50 Hz | ||
| Welding machine cabin | 2 | ||
